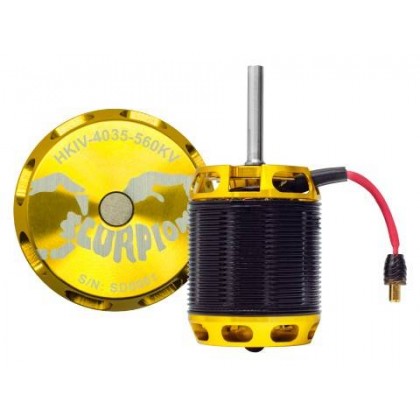

Scorpion HKIV-4035-560KV

Scorpion

249,00 €

HKIV-4035560

Specifications

Stator Diameter 40 mm (1.57 in)
Stator Thickness 35 mm (1.024 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 4+5Turn Delta
Motor Wire 1-Strand 1.5mm
Motor Kv 560KV RPM / Volt
No-Load Current (IO/10v) 2.81 Amps @ 10v
Motor Resistance (RM) 0.013 Ohms
Max Continuous Current 100 Amps
Max Continuous Power 4440 Watts
Weight 456 Grams (16.09 oz)
Outside Diameter 49.5 mm (1.95 in)
Shaft Diameter 5.98 mm (0.235 in)
Body Length 64 mm (2.52 in)
Overall Shaft Length 102.4 mm (4.03 in)
Max Lipo Cell 12s
Peak Continuous Current 120A (5 seconds)
Peak Continuous Power 5328 Watts (5 seconds)
Motor Timing 5deg
Drive Frequency 8kHz

Included in the Box

1 x Scorpion HKIV-4035-560KV Motor
3 x Female Connectors
3 x Connector Cover
4 x M4 Screws

Full Dimension

View Scorpion HKIV-4035-560KV Full Dimension
