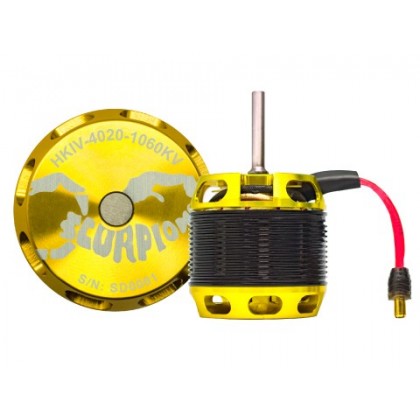

Scorpion HKIV-4020-1060KV

HKIV-4020-1060KV

224,99 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Specifications

Stator Diameter 40 mm(1.57 in)
Stator Thickness 20 mm(0.79 in)
No. of Stator Arms 12
Magnet Poles 10
Motor Wind 4+4 Turn Delta
Motor Wire 1-Strand 1.6mm
Motor Kv 1060KV RPM/Volt
No-Load Current (IO/10v) 4.03 Amps
Motor Resistance (RM) 0.009 Ohms
Max Continuous Current 78 Amps
Max Continuous Power 1731 Watts
Weight 310 Grams (10.94 oz)
Outside Diameter 49.50 mm (1.95 in)
Shaft Diameter 4.98 mm (0.20 in)
Body Length 49.2 mm (1.94 in)
Overall Shaft Length 80 mm (3.15 in)
Max Lipo Cell 6s
Peak Continuous Current 90 Amps (5 seconds)
Peak Continuous Power 1998 Watts (5 seconds)
Motor Timing 5deg
Drive Frequency 8kHz

Included in the Box

1 x Scorpion HKIV-4020-1060KV Motor
3 x Female Connectors
3 x Connector Cover
4 x M3 Screws

Full Dimension

View Scorpion HKIV-4020-1060KV Full Dimension

HKIV-40201060
