Scorpion HKII-4525-520KV – ULTIMATE

HKII-4525-520KV – ULTIMATE

No hay suficientes productos en stock

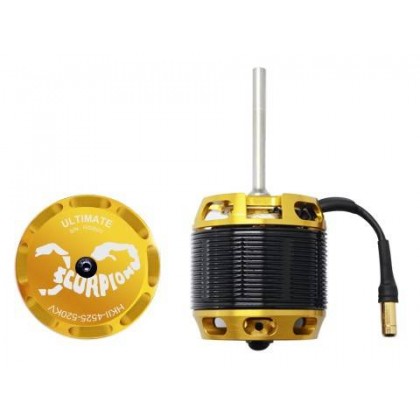

new Scorpion HKII-4525-520kv Ultimate motor

399,00 €
Impuestos incluidos
Cantidad:


Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Specifications

Stator Diameter 45 mm (1.77 in)
Stator Thickness 25 mm (0.98 in)
No. of Stator Arms 12
No. of Stator Poles 10
Motor Wind 5+6T YY
Motor Wire 1-Strand 1.4 mm
Motor Kv 520KV RPM/Volt
No-Load Current (Io/10V) 1.81 Amps
Motor Resistance (RM) 0.012 Ohms
Max Continuous Current 100 Amps
Max Continuous Power 4450 Watts
Weight 516 Grams (18.20oz)
Outside Diameter 56.9 mm (2.24 in)
Shaft Diameter 5.98 mm (0.24 in)
Body Length 57.7 mm (2.27 in)
Overall Shaft Length 112 mm (4.41 in)
Max Lipo Cell 12s
Max Peak Current 230A (2 seconds)
Max Peak Power 10200 Watts (2 seconds)
Motor Timing 5deg to 15 deg
Drive Frequency 8kHz

Weight including packaging

780g

Full Dimension

View Scorpion HKII-4525-520KV – ULTIMATE Full Dimensio
