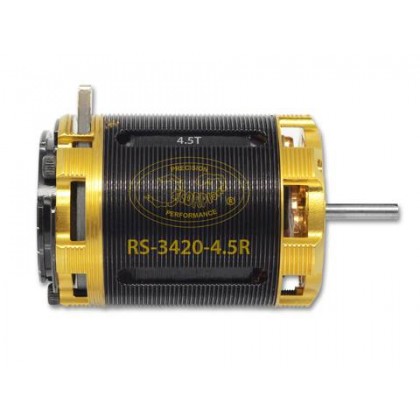

RS-3420 4.5T

No hay stock de este producto.

Scorpion

89,00 €

rs_3420_45t

Descripción

corpion Power Systems RS-3420 series Brushless DC car motor. These motors are designed to meet and comply with all standards set forth by IFMAR for use in 1/10th and 1/12th scale electric powered RC racing cars. Scorpion motors are designed from the ground up to meet the demanding needs of racing enthusiasts, and are built with efficient, high-temperature components that allow them to produce the maximum power and speed that is possible. Years of research and development by top engineers and hands on testing by professional drivers has allowed us to make the RS-3420 series the best motors available on the market today!

• Patented Screw-type rotor surface to increase flux density and maximize cooling

• Built-in Cooling Fan on the rotor to increase airflow and decrease internal temperatures

• No plastic inserts are used to achieve maximum copper fill for the motor windings

• Rotor magnets are protected by a metal sleeve for maximum durability

• Built-in temperature sensors allow for on-track monitoring when used with Scorpion ESC

• 200% more cooling surface than other comparable motors for better heat dissipation

• The largest glued surface for the rotor, shaft and magnets of any motor in its class

• High grade Silicon Steel is used in the stator assembly for maximum flux density

• High purity copper wire is used for minimum internal resistance

• High temperature magnets are used to take the heat of competition

• Motor parts CNC machined from 7075 aerospace grade aluminum alloy

Specifications

Stator Diameter34 mm (1.34 in)
Stator Thickness21 mm (0.83 in)
No. of Stator Arms3
No. of Stator Poles2
Motor Wind4.5T Y
Motor Wire1-Strand 2.46 mm
Motor Kv7170KV RPM/Volt
No-Load Current (Io/7.8V)6.7 Amps
Motor Resistance (RM)0.041 Ohms
Max Continuous Current95 Amps
Max Continuous Power703 Watts
Weight167.2 Grams (5.9 oz)
Outside Diameter36 mm (1.41 in)
Shaft Diameter3.17 mm (0.12 in)
Body Length52.65 mm (2.07 in)
Overall Shaft Length67.4 mm (2.65 in)
Rotor Magnet Diameter12.5mm (0.49 in)
Max Lipo Cell2s
Max Peak Current114 (2 seconds)
Max Peak Power850 Watts (2 seconds)
Motor TimingAdjustable deg
Drive Frequency8kHz

Weight including packaging

View Scorpion RS-3420 4.5T Full Dimension
