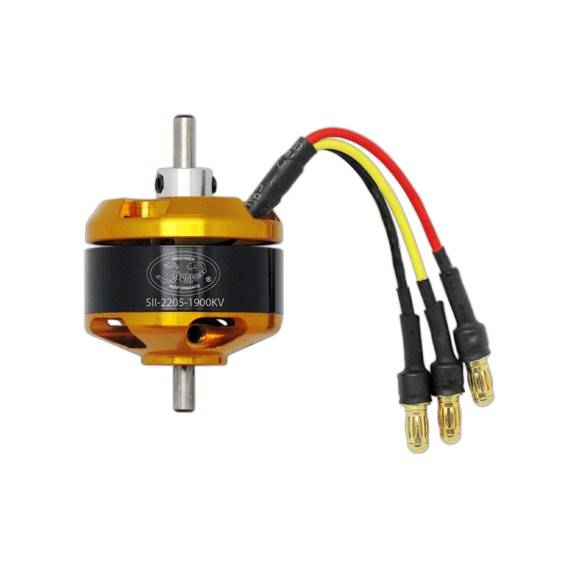

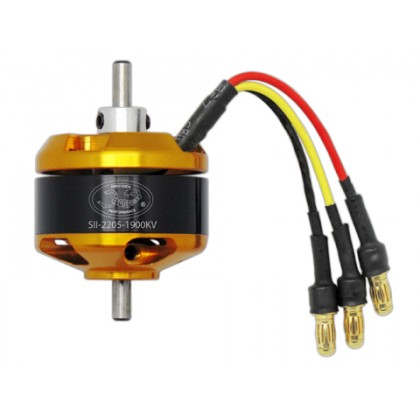

SII-2205-1900KV (V2)

28,71 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Included in the Box

1 x Scorpion SII-2205-1900KV Motor
1 x Scorpion 22mm Cross Mount
1 x Scorpion 3mm Threaded Prop Adapter
3 x Female Connectors
3 x Heat Shrink
4 x M3 Screws

Weight including packaging

169.8g

Data Chart

View Scorpion SII-2205-1900KV (V2) Data Chart

© 2007—

Stator Diameter 22.0 mm (0.87 in)
Stator Thickness 5.0 mm (0.197 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 28 Turn Delta
Motor Wire 3-Strand 0.21mm
Motor Kv 1900 RPM / Volt
No-Load Current (Io/10V) 0.58 Amps
Motor Resistance (Rm) 0.128 Ohms
Max Continuous Current 12 Amps
Max Continuous Power 130 Watts
Weight 35.4 Grams (1.25 oz)
Outside Diameter 27.9 mm (1.13 in)
Shaft Diameter 2.98 mm (0.12 in)
Body Length 23.0 mm (0.9 in)
Overall Shaft Length 42.0 mm (1.65 in)
Max Lipo Cell 3s
Motor Timing 5deg
Drive Frequency 8kHz
