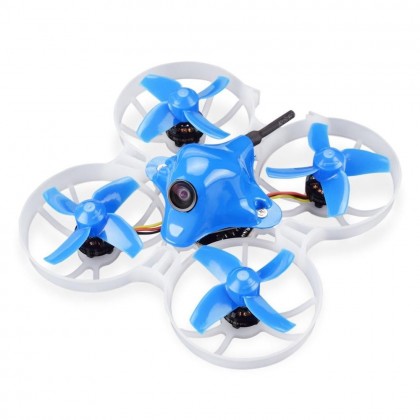

Beta75X 2S Whoop Quadcopter (XT30) EU-LBT

Beta75X 2S Whoop Quadcopter (XT30) EU-LBT

BNF con receptor Frsky EU-LTB

139,00 €
159,00 €
Ahorre un 20,00 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36
  • Beta75X start a new era of 2S whoop drones. With a big improvement in power, you could fly real acro, like a larger quad, but is still small enough, safe enough, and quiet enough to fly anywhere.
  • With the high performance STM32F405 processor FC boards and tuned Betaflight Ominibus 3.5.0 firmware, everyone could fly the Beta75X drone like a racing pro.
  • Durable and light enough frame is customized for the Beta75X. A total weight of 41g give pilots a good balance of weight and nice punch on 2S battery.
  • Whole drone no soldering or tinkering necessary. Customized lightest 1103 11000KV motors with cable connectors. Just plug and play.
  • 350mAh 2S high rate battery is recommend by default. But pilot could also use their whoop batteries with a replaced power cable. Optional and affordable.

Specification

  • Weight: 41g (without battery)
  • Motors: 1103 11000KV with connector
  • Props: 40mm 4-blades props, 1.5mm shaft hole
  • Camera: Z02 AIO Camera 35 degree
  • Receiver Option: Frsky
  • Battery:350mah 2S Battery

FC SPECIFICATIONS

  • CPU: STM32F405
  • Six-Axis: MPU6000
  • Size: 26mm x 26mm, whoop mounting pattern
  • Firmware version: Betaflight OMNIBUSF4SD (OBSD) 3.5.0
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Smart Audio port is available for radio control VTX

ESC SPECIFICATIONS

  • Support BLheli/BLHELI_S suite Pass-through ready
  • Dshot600 in default
  • Input voltage: 2S lipo
  • Cotinue current: 10A
  • Peak current: 15A
  • Firmware: BLHELI_S
  • Processor: SILABS EFM8BB21F16G

Z02 AIO Camera VTX

  • Output power: 0mW, 25mW and 200mW (Adjustable)
  • Smart Audio function is included for radio control
  • Antenna: Dipole ANT
  • Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
  • TV System: NTSC
  • Field of view: 100-120 degrees with 1/4 lens

Props Out

The Beta75X drone comes with "props out" in default. Why we need "props out" direction?

Default Betaflight props direction, quadcopter dips and "washes out" in hard corners. With reversed props or "props out", no more dipping even in hardest cornering.
