SII-3020-1110KV (V2)

85,00 €

Descripción

Included in the Box

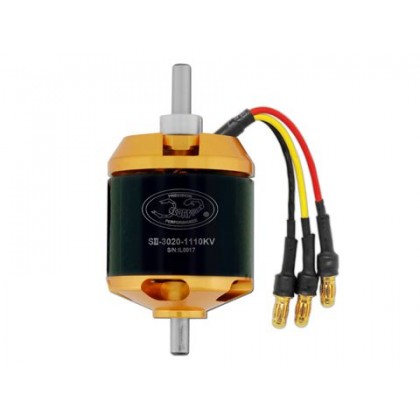

1 x Scorpion SII-3020-1110KV Motor
1 x Scorpion 30mm Cross Mount
1 x Scorpion 5mm Threaded Prop Adapter
3 x Female Connectors
3 x Heat Shrink
4 x M3 Screws

Weight including packaging

324g

Data Chart

View Scorpion SII-3020-1110KV (V2) Data Chart

Stator Diameter30.0 mm (1.18 in)
Stator Thickness20 mm (0.79 in)
No. of Stator Arms12
Magnet Poles14
Motor Wind8 Turn Delta
Motor Wire17-Strand 0.25mm
Motor Kv1110 RPM / Volt
No-Load Current (IO/10V)2.08 Amps
Motor Resistance (Rm)0.016 Ohms
Max Continuous Current60 Amps
Max Continuous Power840 Watts
Weight166 Grams (5.86 oz)
Outside Diameter37.50 mm (1.47 in)
Shaft Diameter4.98 mm (0.196 in)
Body Length45.75 mm (1.80 in)
Overall Shaft Length74.5 mm (2.93 in)
Max Lipo Cell4s
Motor Timing5deg
Drive Frequency8kHz
